dc wallbox

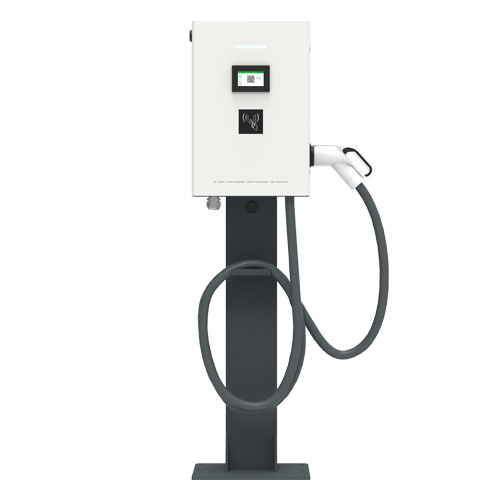

The DC wallbox supports high-voltage charging of electric vehicles for a wide variety of use cases, increasing the EV compatibility of public charging stations. The DC wallbox is compact and enables fast charging up to 20-40 kW. Equipped with single or dual CCS and CHAdeMO connectors and a variety of mounting options, it is ideal for offices, parking facilities, shopping areas and car dealerships.

Hongjiali's new DC wallbox EV charger is a compact and powerful wall-mounted charger designed for fast and convenient charging of all electric vehicle models. Experience the power and speed of DC charging at home.

Explore Hongjiali's DC wallbox, which provides efficient and fast EV charging solutions designed for residential and commercial use.

DC wallbox 20kW/30kW/40kW product parameters are as follows:

Parameters	Requirements
General Requirements
EV Charger Type	DC
Charger Capacity	20KW	30KW	40KW
Equipment size	L650*W440*H190(mm)
Product Model NO.	ENC-DCB020A	ENC-DCB030A	ENC-DCB040A
	ANSI-DCB020A	ANSI-DCB030A	ANSI-DCB040A
	JIS-DCB020A	JIS-DCB030A	JIS-DCB040A
Mounting	Wall-Mounted
Input Requirements
AC Supply System	Three-Phase, 5 Wire AC system
Nominal Input Voltage	AC380V±15%
Input Frequency	45-65Hz
Environmental Requirements
Ambient Temperature Range	-25 to 55°C
Ambient Humidity	5 to 95%
Storage Temperature	-40 to 70°C
Mechanical Requirements
IP Ratings	IP 54
Cooling	Air-cooled
Output Requirements
Number of Outputs	1
Type of Each Output	200-1000VDC
Single Output Max.Current	66 Amp	125 Amp	132 Amp
Power Factor	≥0.99(50% load above)
User Interface & Display Requirements
Display & Touch-Screen Size	7 Inches Touch Screen with Shell
User Authentication	QR Code/RFID Card /Password Login
Metering Information	Consumption Units
Communication Requirements
Communication between EVSE and Central server	OCPP 1.6J Protocol (Optional)
Interface between Charger and CMS	Ethernet/3G/4G/WIFI (Optional)
Protection & Safety Requirements
Executive Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772,CHAdeMO etc.
Safety Parameters	Over Current, Over Voltage, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc.

The DC wallbox, especially the DC wallbox charger for electric vehicles, is a wall-mounted charging device that can be installed in a variety of locations, including residences, workplaces, retail locations and other public places. The following is a detailed introduction to the DC wall box:

I. Definition and Use

The DC wallbox is a charging device designed for electric vehicles. It is usually installed on the wall to provide DC fast charging services for electric vehicles. This device can support multiple electric vehicles connected in parallel, providing them with a fast and efficient charging experience.

II. Working Principle

The working principle of the DC wallbox is relatively complex, but it mainly includes the following key steps:

Separation element: reversibly connect and separate the DC wallbox to the AC power grid to ensure the safety and stability of the charging process.

Rectifier: rectify the three-phase AC voltage and convert it into DC voltage to charge the battery of the electric vehicle.

DC voltage converter: further convert and adjust the rectified DC voltage to meet the charging needs of the electric vehicle battery.

III. Main application areas

The DC wallbox is mainly used in the following areas:

Residential areas: provide residents with convenient electric vehicle charging services to meet family charging needs.

Workplace: provide employees with electric vehicle charging services for enterprises to enhance employee welfare and corporate image.

Public places: such as parking lots, service stations, etc., provide electric vehicle charging services to the public and promote the popularization and development of electric vehicles.

4. Product Features and Advantages

Efficient Charging: The DC wallbox adopts DC fast charging technology, which can greatly shorten the charging time of electric vehicles.

Safe and Reliable: The equipment has multiple safety protection measures, such as overcurrent protection, overvoltage protection, etc., to ensure the safety and stability of the charging process.

Easy to install: The DC wallbox adopts a wall-mounted design, which is convenient and flexible to install and can adapt to various installation environments.

Intelligent Management: Some DC wallboxes also have intelligent management functions, which can be remotely monitored and managed through mobile phone APP or cloud platform to improve charging efficiency and user experience.

5. DC wallbox project case display

Q1: Are you trading company or manufacturer?

A: We are a professional electric car charger manufacturer and source factory.

Q2: what is the lead time?

A: Usually, 15-20 working days to produce.

Q3: Can we ask you to print our logo into chargers? Can the color of the plug and wire be customized according to our requirements?

A: Yes. We support OEM/ODM production.

Q4: How about your product quality? What should I do if something goes wrong?

A: First of all, we sell our products for many years, and we have a professional engineering team in this field. Moreover, our products have been strictly inspected and repeatedly tested before leaving the factory, and the good and good rate of the varieties has reached 99.98%. Finally, we have service providers in some areas, please contact us for more information

Q5: What is your quality control system?

A: Complete all incoming material inspection, process inspection, and final inspection; 30 test procedures will be done before the goods leave the factory, and charging test videos will be sent; products have CE, ROHS, FCC, UL, KC certification.

Q6: Can I install the EV charger by myself?

A: Yes, but we suggest the user contact a professional electrician for installation to avoid potential safety hazards.

Q7：Why my charging power is lower than the specification?e?

A: Because during the charging session, a few factors will influence the output. Here is some potential reason:

①The BMS(Battery management system) of the car controls the charging session.

②The Max allowed current was set and limited through your APP.

For more details, please query us at sales@hjlcharger.com

Q8: How much time is required to fully charge my car using this charger?

A: The charging speed is determined by three factors working in conjunction: the On Board Charging (OBC) System, the maximum current allowed by the charging cable, and the EVSE. As an illustration, if the EV's maximum allowed power is 30KW and the battery capacity is 60KWh, it would take approximately 2 hours to charge the battery fully.

Q9: What is dynamic load balancing and why do I need that?

A: Dynamic load balancing is a technique that distributes the electrical load across multiple charging stations based on real-time demand. This helps prevent the electrical grid's overload and ensures that each charging station receives appropriate power.

Dynamic load balancing technology can help distribute the available power among multiple EV chargers in real-time, optimizing available power and reducing the risk of overloading the grid. This can help prevent power outages and reduce the need for costly grid upgrades.

Additionally, dynamic load Balancing can help reduce charging times and improve the overall charging experience for EV drivers, making it a valuable feature for both residential and commercial charging applications.
