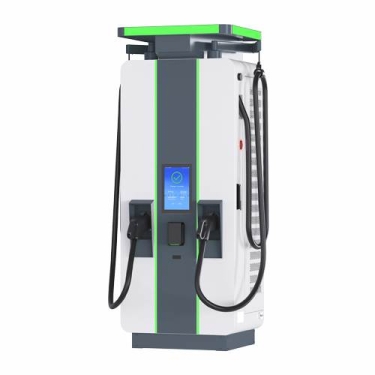

80kw 5 meters gun line floor type double gun fast charging

80kw 5 meters gun line floor type double gun fast charging is a DC fast charger with specific power, cable length and number of gun heads. It integrates charging control and guidance, human-computer interaction control, communication, billing, metering and other functions. It is efficient, convenient and safe, and plays an important role in the field of electric vehicle charging.

80kw 5 meters gun line floor type double gun fast charging product technical parameters are as follows:

Parameters	Requirements
General Requirements
EV Charger Type	DC
Charger Capacity	80KW
Equipment size	L720*W401*H2000 / L700*W450*H1680(mm)
Product Model NO.	ENC-DCL080B	ANSI-DCL080B	JIS-DCL080B
Mounting	Ground-Mounted
Input Requirements
AC Supply System	Three-Phase, 5 Wire AC system
Nominal Input Voltage	AC380V±15%
Input Frequency	45-65Hz
Environmental Requirements
Ambient Temperature Range	-25 to 55°C
Ambient Humidity	5 to 95%
Storage Temperature	-40 to 70°C
Mechanical Requirements
IP Ratings	IP 54
Cooling	Air-cooled
Output Requirements
Number of Outputs	2
Type of Each Output	200-1000VDC
Single Output Max.Current	200/250 Amp
Power Factor	≥0.99(50% load above)
User Interface & Display Requirements
Display & Touch-Screen Size	7 Inches Touch Screen with Shell
User Authentication	QR Code/RFID Card /Password Login
Metering Information	Consumption Units
Communication Requirements
Communication between EVSE and Central server	OCPP 1.6J Protocol (Optional)
Interface between Charger and CMS	Ethernet/3G/4G/WIFI (Optional)
Protection & Safety Requirements
Executive Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772,CHAdeMO etc.
Safety Parameters	Over Current, Over Voltage, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc.

Here are some brief introductions to 80kw 5 meters gun line floor type double gun fast charging:

1. Main parameters

1.1. Power: 80kw. This means that the maximum output power of the charger is 80 kilowatts, which can meet the fast charging needs of most electric vehicles.

1.2. Cable length: 5 meters. This refers to the cable length from the charger body to the charging gun, which provides the owner with enough operating space and facilitates the connection of the vehicle charging port.

1.3. Number of gun heads: double guns. This means that the charger is equipped with two charging guns at the same time, which can charge two electric vehicles at the same time, improving the charging efficiency.

2. Type and characteristics

2.1. Type: floor-standing. Installed on the ground, the structure is stable and easy for car owners to use.

2.2. Features:

2.2.1. Efficient charging: 80kw power can quickly replenish the power of electric vehicles and shorten the charging time.

2.2.2. Dual-gun design: It can meet the charging needs of two vehicles at the same time, improving the utilization rate of the charger.

2.2.3. Safety protection: The charger is equipped with multiple safety functions such as overvoltage protection, undervoltage protection, overload protection, and short circuit protection to ensure the safety and reliability of the charging process.

2.2.4. Intelligent operation: It supports multiple payment methods such as scanning codes and swiping cards, and the operation is simple and fast.

3. Application scenarios

80kw 5 meters gun line floor type double gun fast charging charger can be applied to the following scenarios:

3.1. Public parking lot: Provide convenient charging services for passing electric vehicles.

3.2. Commercial complex: Meet the charging needs of electric vehicles in shopping centers, hotels, restaurants and other places.

3.3. Residential community: Provide electric vehicle owners in the community with fast charging options other than home charging.

3.4. Highway service area: Provide fast charging service for electric vehicles on long-distance trips to alleviate range anxiety.

4. Precautions

4.1. Check before use: Before using the charger, please check whether the charger and vehicle charging port are clean and free of foreign objects to ensure a good charging connection.

4.2. Correct operation: Follow the charger's operating instructions to correctly connect the charging gun and vehicle charging port to avoid improper operation leading to charging failure or equipment damage.

4.3. Pay attention to safety: During the charging process, please keep the charger and the vehicle free of flammable and explosive items to ensure the safety of the charging environment.

5. 80kw 5 meters gun line floor type double gun fast charging project display

Q1: Are you trading company or manufacturer?

A: We are a professional electric car charger manufacturer and source factory.

Q2: what is the lead time?

A: Usually, 15-20 working days to produce.

Q3: Can we ask you to print our logo into chargers? Can the color of the plug and wire be customized according to our requirements?

A: Yes. We support OEM/ODM production.

Q4: How about your product quality? What should I do if something goes wrong?

A: First of all, we sell our products for many years, and we have a professional engineering team in this field. Moreover, our products have been strictly inspected and repeatedly tested before leaving the factory, and the good and good rate of the varieties has reached 99.98%. Finally, we have service providers in some areas, please contact us for more information

Q5: What is your quality control system?

A: Complete all incoming material inspection, process inspection, and final inspection; 30 test procedures will be done before the goods leave the factory, and charging test videos will be sent; products have CE, ROHS, FCC, UL, KC certification.

Q6: Can I install the EV charger by myself?

A: Yes, but we suggest the user contact a professional electrician for installation to avoid potential safety hazards.

Q7：Why my charging power is lower than the specification?e?

A: Because during the charging session, a few factors will influence the output. Here is some potential reason:

①The BMS(Battery management system) of the car controls the charging session.

②The Max allowed current was set and limited through your APP.

For more details, please query us at sales@hjlcharger.com

Q8: How much time is required to fully charge my car using this charger?

A: The charging speed is determined by three factors working in conjunction: the On Board Charging (OBC) System, the maximum current allowed by the charging cable, and the EVSE. As an illustration, if the EV's maximum allowed power is 30KW and the battery capacity is 60KWh, it would take approximately 2 hours to charge the battery fully.

Q9: What is dynamic load balancing and why do I need that?

A: Dynamic load balancing is a technique that distributes the electrical load across multiple charging stations based on real-time demand. This helps prevent the electrical grid's overload and ensures that each charging station receives appropriate power.

Dynamic load balancing technology can help distribute the available power among multiple EV chargers in real-time, optimizing available power and reducing the risk of overloading the grid. This can help prevent power outages and reduce the need for costly grid upgrades.

Additionally, dynamic load Balancing can help reduce charging times and improve the overall charging experience for EV drivers, making it a valuable feature for both residential and commercial charging applications.
